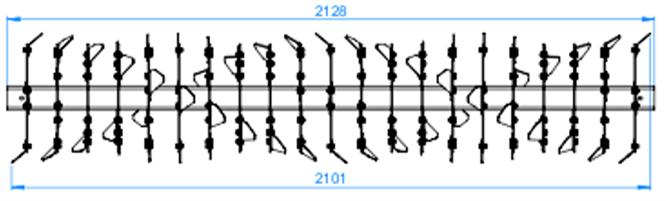

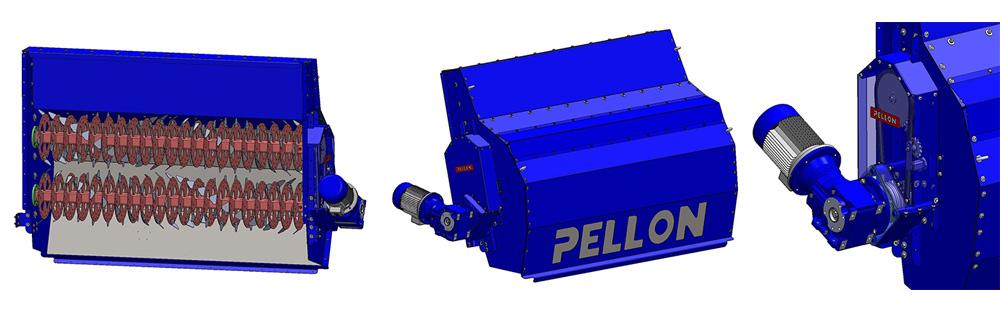

Module Pro by Miika | Jul 6, 2021 Etusivu|Nauta|Feeding|Module Pro Module Pro FD The new Module Pro range varies in capacity from 17 to 27 cubic metres. They range in length from 6.25 to 10 metres. Module Pro devices are simpler than their predecessors, which gives them a longer service life. As in the larger Module HD range, the conveyor chains are zinc-coated roller chains that are protected inside closed channels. Another advantage of using a roller chain is that there is no limit to how far the conveyor can be reversed, allowing the filling device to be filled entirely at any time. The conveyor’s scrapers travel along slides made out of recycled plastic. The conveyors of the new filling devices use two chains instead of the four used in previous models. Using two chains ensures that the chains are loaded evenly and the device is more reliable. The closed-bottom design of the filling device makes it easier to keep the feed room tidy, allowing for water and silage effluent to be drained cleanly to one point on the feed room floor. Module Pro filling devices can be equipped with the Pellon Single Ripper or Twin Ripper. Download brochure Module Pro FD baletable Controls Pellon G-Pro2 Capacity 16,5 m³ 20 m³ 27 m³ Length 6250 mm 7500 mm 10000 mm Width / Loading 2620 / 2135 mm Technical data Module Pro FD baletable Controls Pellon G-Pro2 Capacity 16,5 m³ 20 m³ 27 m³ Length 6250 mm 7500 mm 10000 mm Width / Loading 2620 / 2135 mm Pellon Single Ripper This Y-bladed ripper is best suited for portioning out silage and additional feed components such as broad beans. The S-Ripper is particularly well suited for feed corn. With one ripper unit, the table can be filled to about 70% of the table volume given in the table. Pellon G-Pro2 improves even portioning by adjusting the speed of the filling device’s conveyor according to the amount of feed in the ripper. Pellon Twin Ripper Twin Ripper FD is our best all-purpose ripper. This large-drummed, Y-bladed ripper works well with all types of silage, as well as halved bales. Each ripper drum have its own direct-drive motor controlled by a variable-frequency drive. With two ripper units, the table can be filled to 100% of the volume indicated in the table. Pellon G-Pro2 adjusts feeding speed by controlling the speed of the filling device’s conveyor according to the loading of the ripper’s drums. Features Module Pro FD Controls Pellon G-Pro2 Capacity 16 m³ 20 m³ 27 m³ Length 6250 mm 7500 mm 10000 mm Width / Loading 2790 / 2135 mm Single Ripper Motor power 5,5 kW Number of blades 84 pcs Drum diameter 650 mm Technical Data Single Ripper Module Pro FD Controls Pellon G-Pro2 Capacity 16 m³ 20 m³ 27 m³ Length 6250 mm 7500 mm 10000 mm Width / Loading 2790 / 2135 mm Single Ripper Motor power 5,5 kW Number of blades 84 pcs Drum diameter 650 mm Features Module Pro FD Controls Pellon G-Pro2 Capacity 16 m³ 20 m³ 27 m³ Length 6250 mm 7500 mm 10000 mm Width / Loading 2830 / 2135 mm Twin Ripper Motor power 4 kW + 4 kW Number of blades 168 pcs Drum diameter 650 mm Technical Data Twin Ripper Module Pro FD Controls Pellon G-Pro2 Capacity 16 m³ 20 m³ 27 m³ Length 6250 mm 7500 mm 10000 mm Width / Loading 2830 / 2135 mm Twin Ripper Motor power 4 kW + 4 kW Number of blades 168 pcs Drum diameter 650 mm How can we help Please contact us so we can discuss more individually tailored solution for your needs. We will be happy to help. Call us +358 6 4837 555 Leave a contact request
